GALLERY
Opal Springs Fish passage Project. Construction started in the spring of 2018, and will be completed fall 2019.

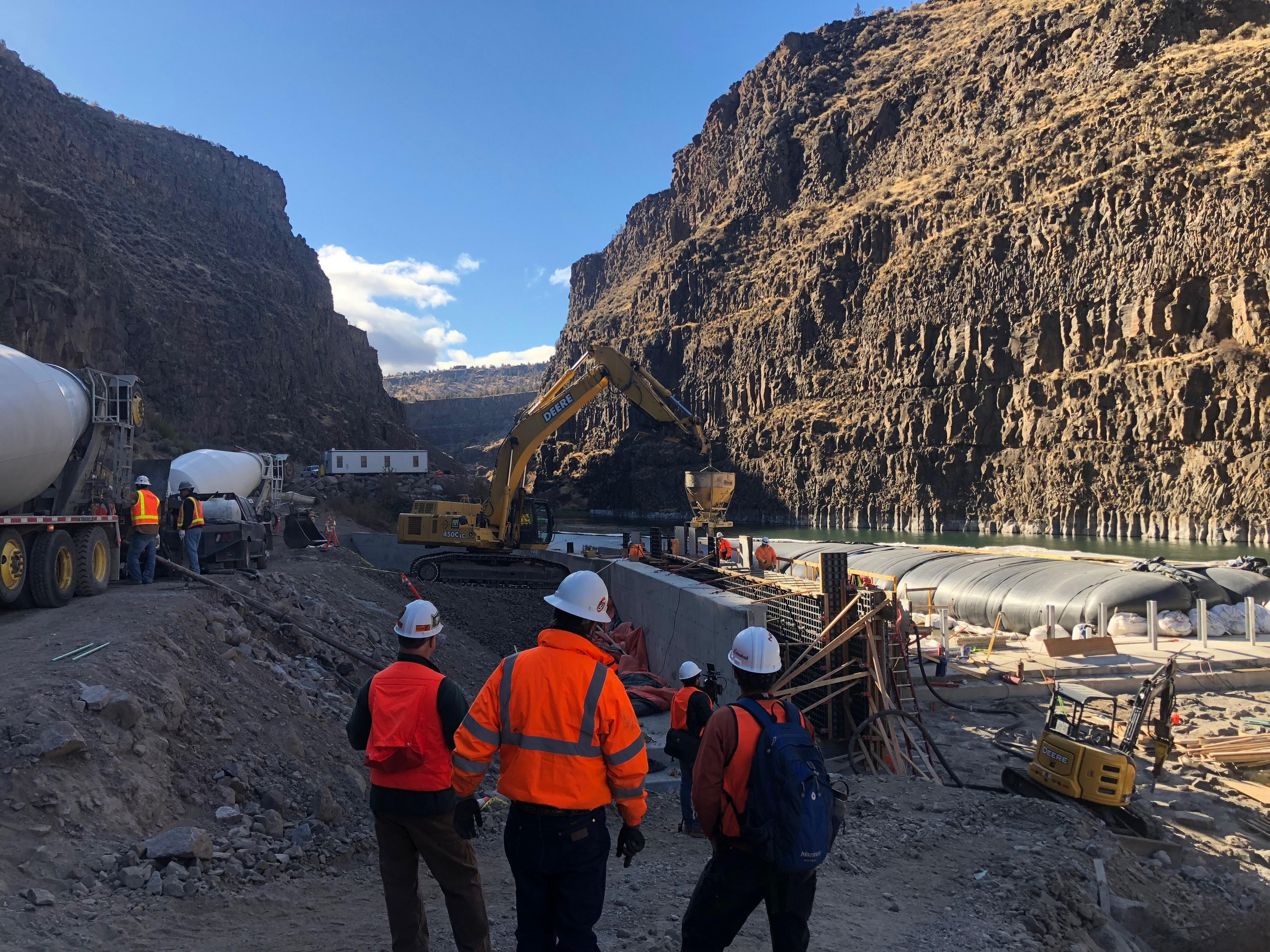

![]() Big projects take lots of of oversight. | ![]() Early planning and Wahoo film crews documenting the entire project, start to finish. | ![]() Late 2018 poring concrete into the top of the fish ladder |
---|---|---|

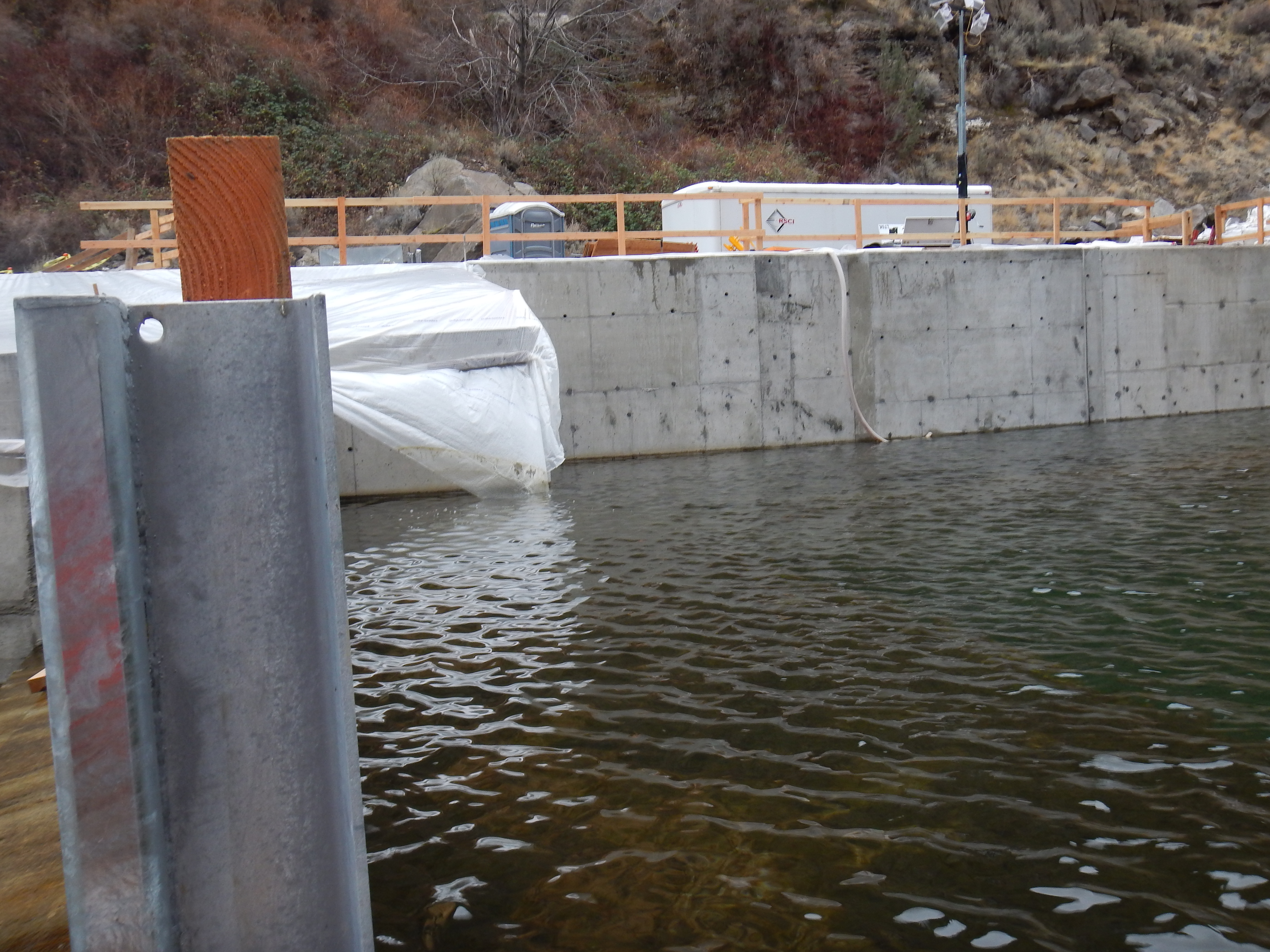

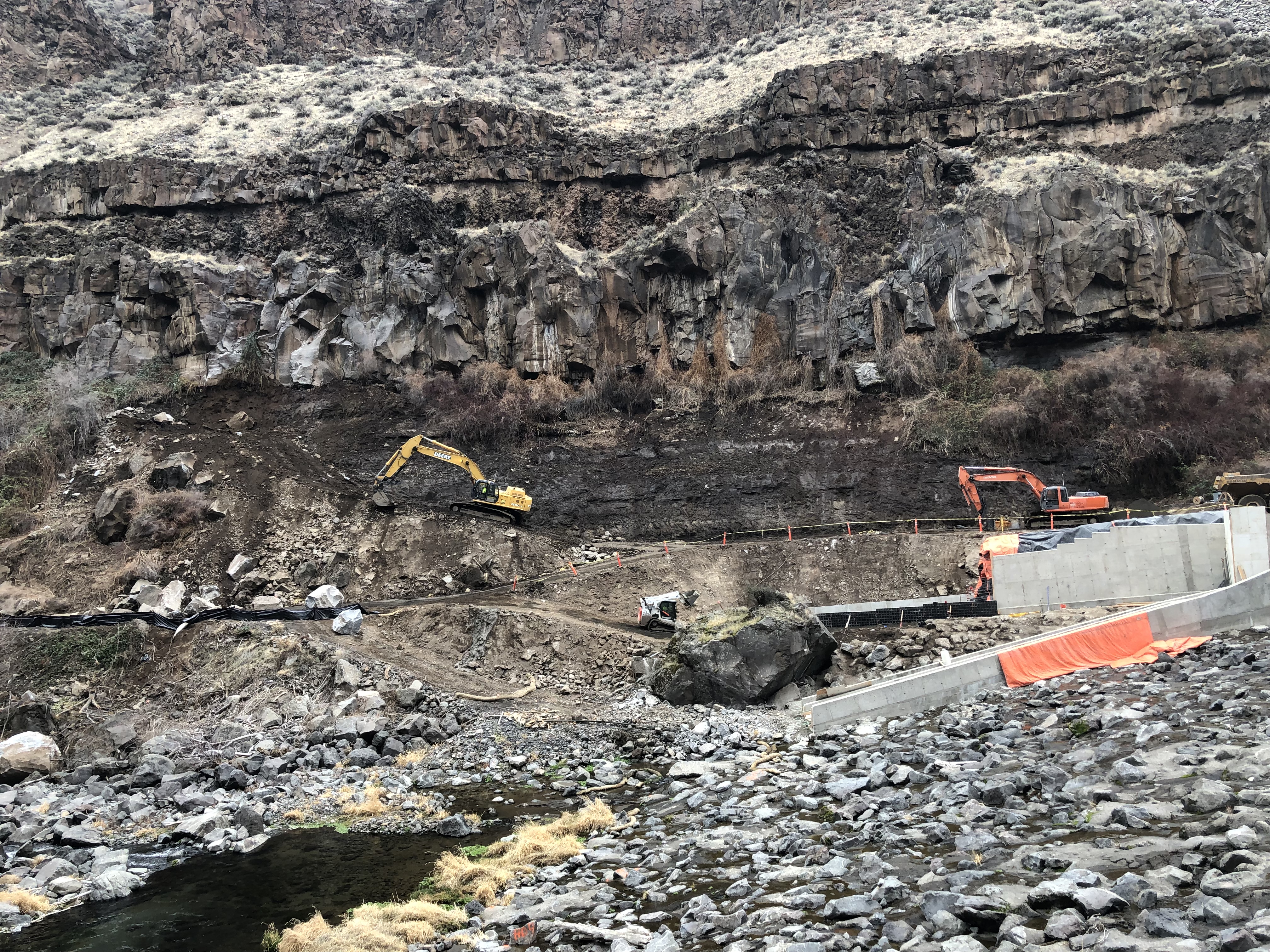

![]() Excavating the side walls of the canyon to keep the cliff from falling onto the ladder system, down the road. | ![]() Digging roads to move around the canyon floor | ![]() after the top portion of the ladder was poured, the water level was brought up to test it. |

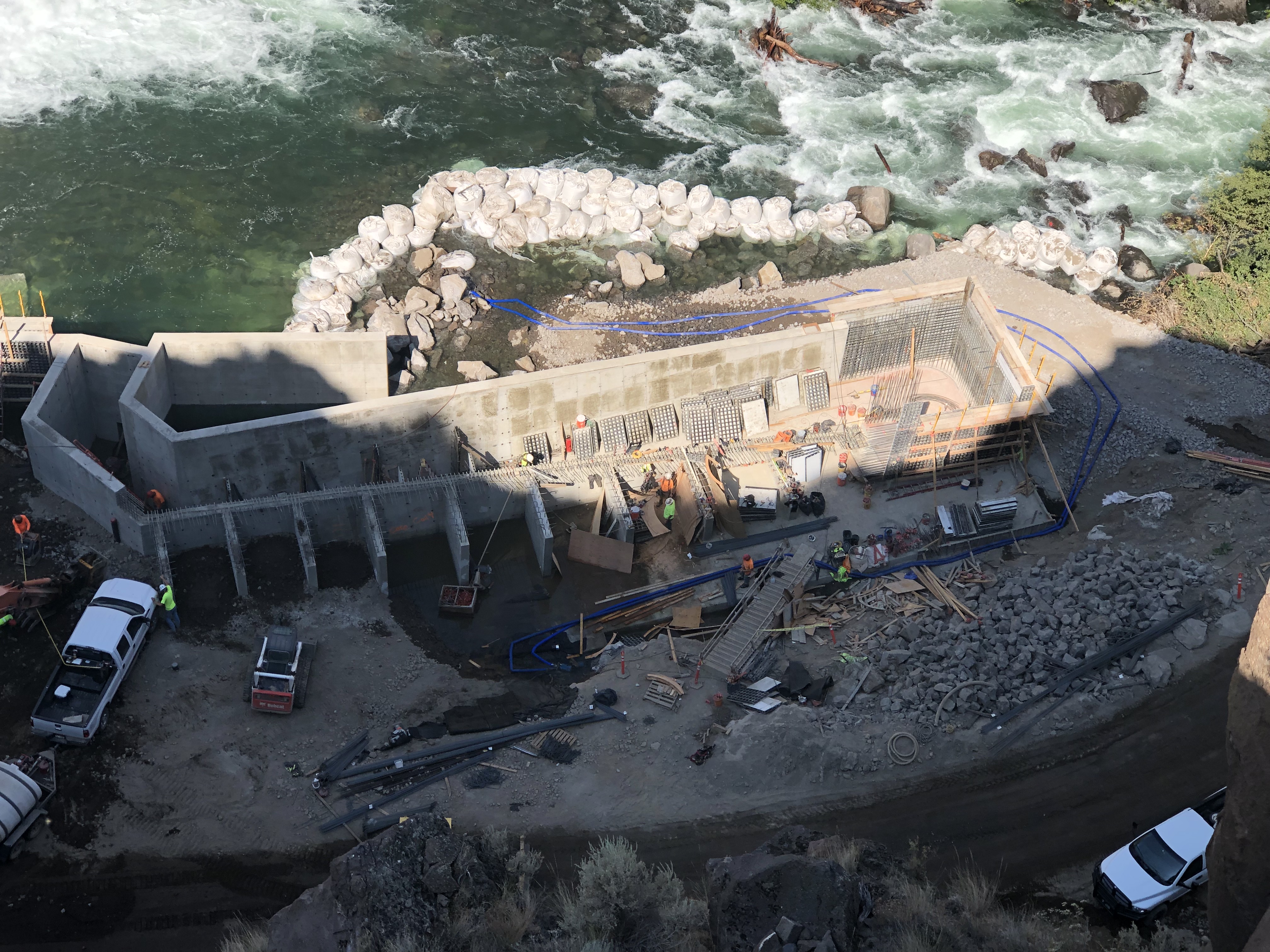

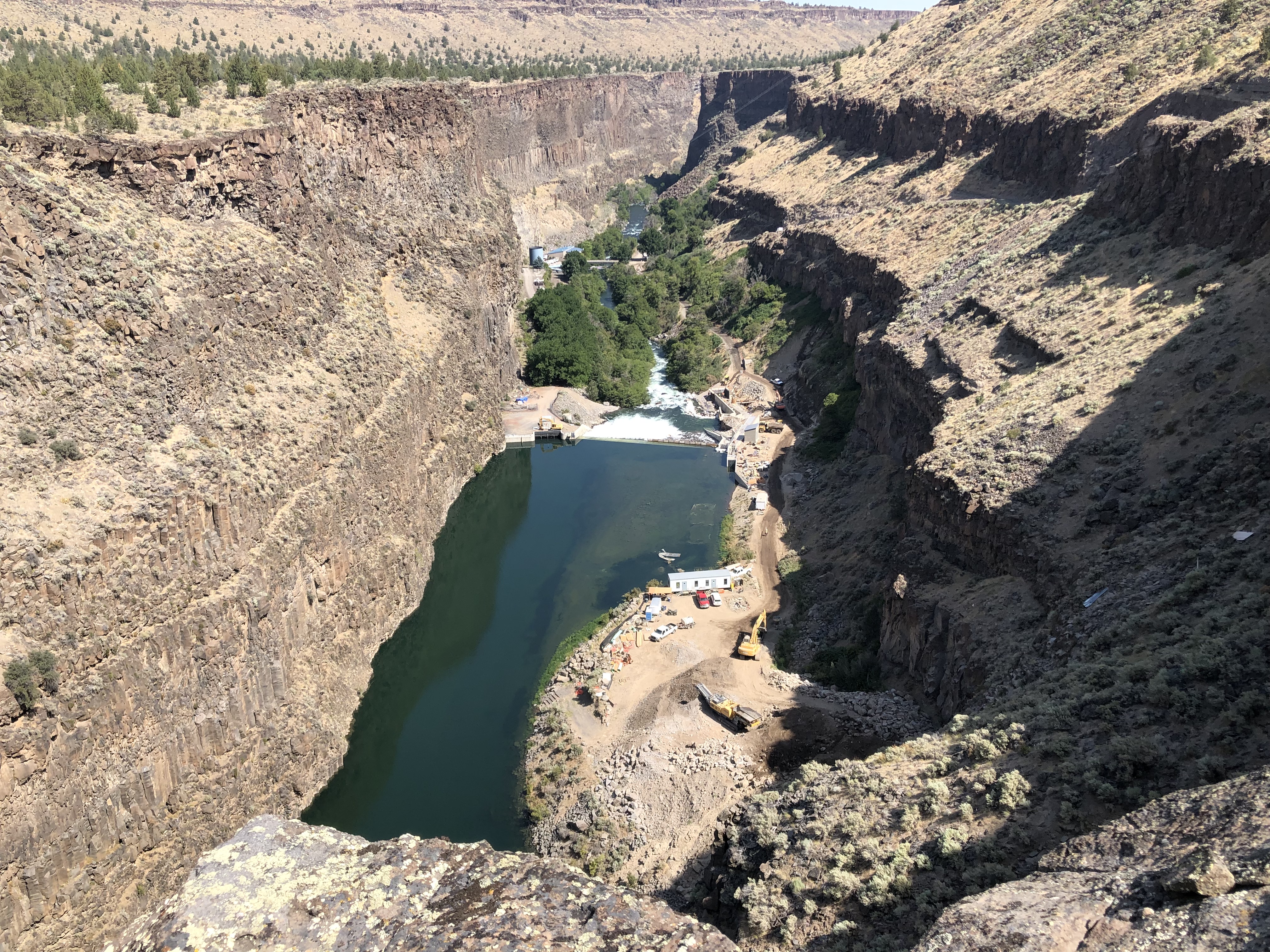

![]() Cliff edge photo of the entire site facing N/E | ![]() early 2018 cliff edge photo facing down river N/E | ![]() Segments of the ladder being formed and poured in phases. |

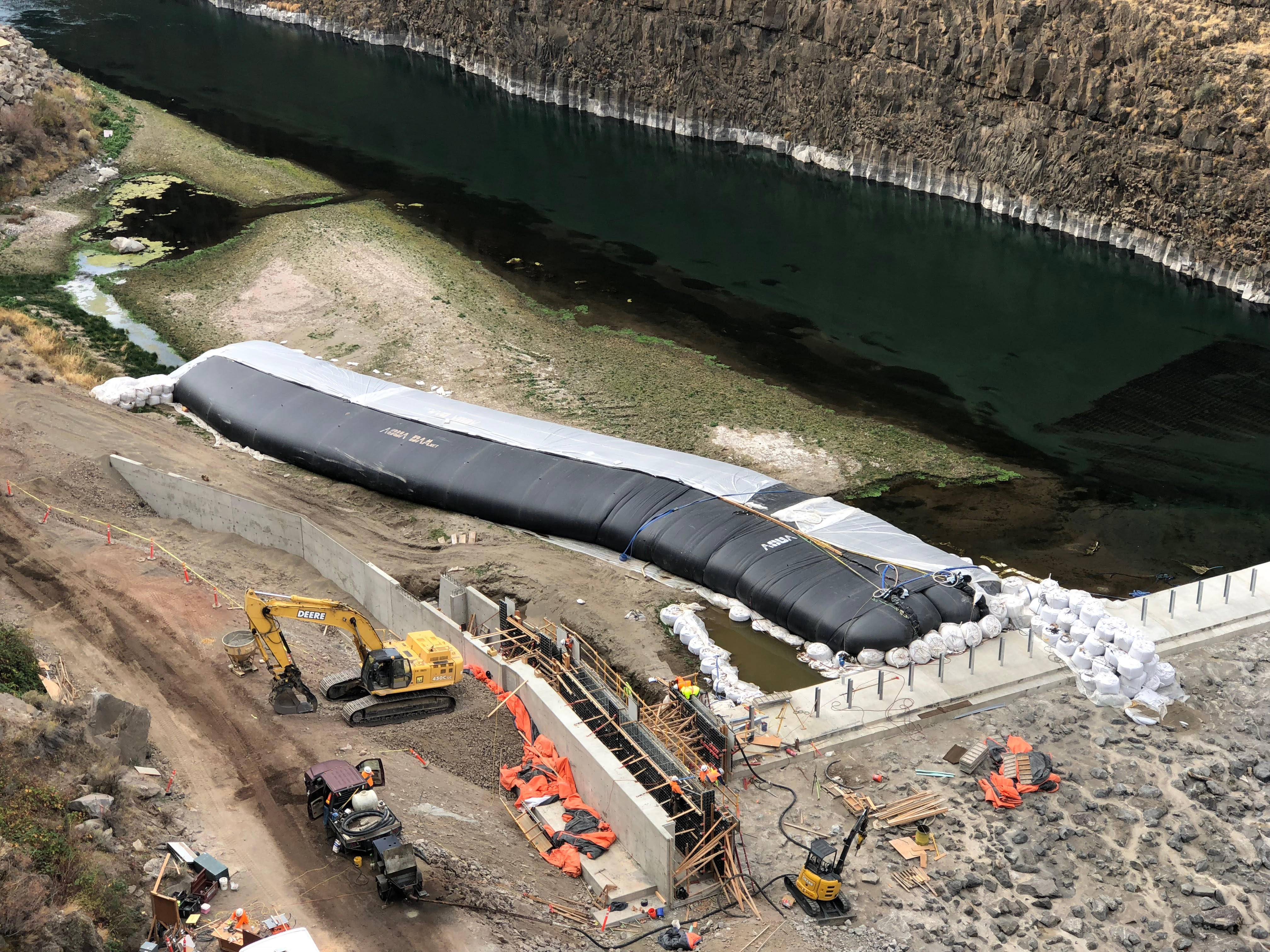

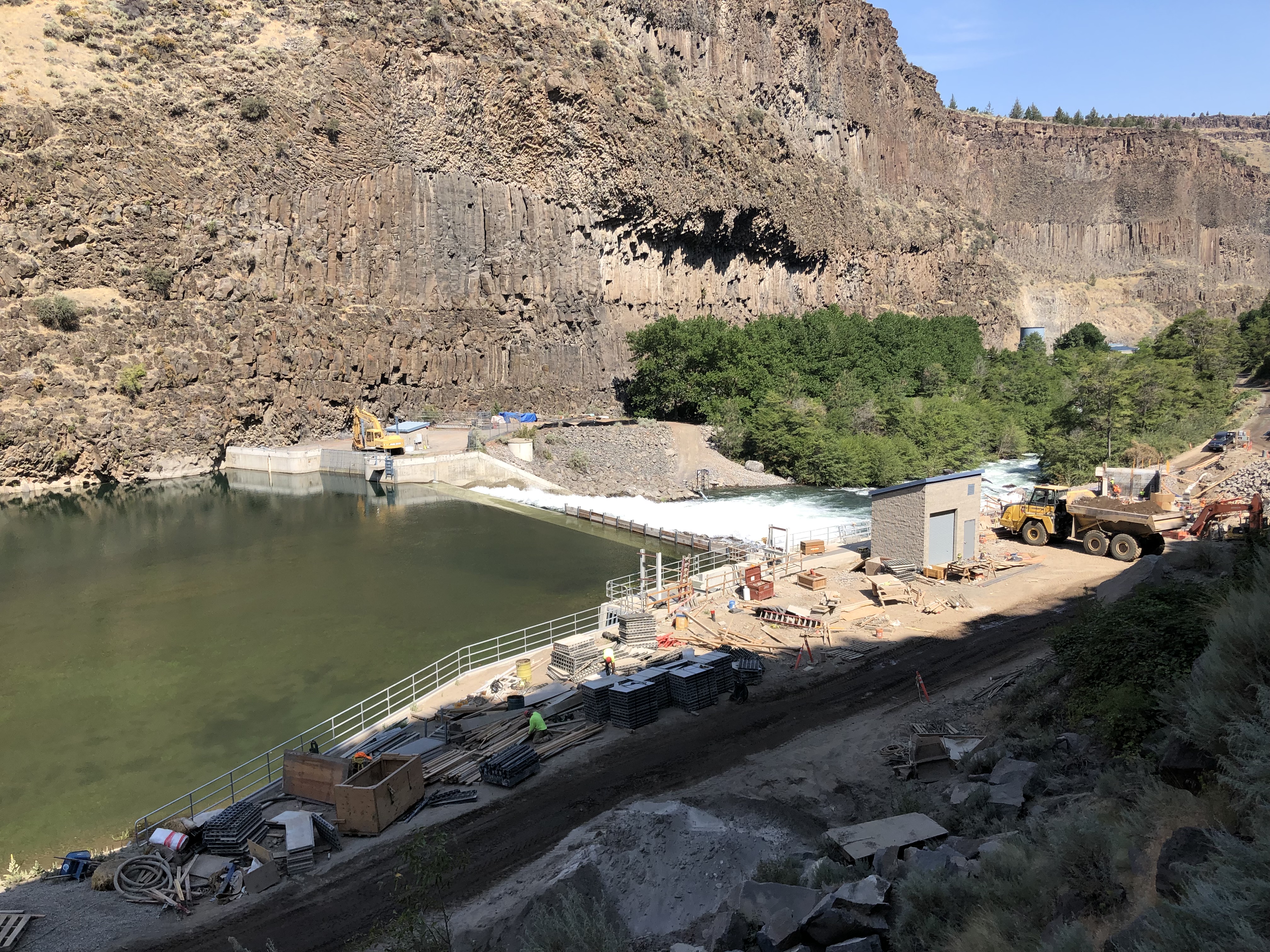

![]() Baffles in the fish ladder being formed before the retaining walls on the outside, very unique process to watch | ![]() Large inflatable dams used to restrict flows from concrete construction over the ladder. | ![]() dam sill, showing top of ladder, and operations building. |

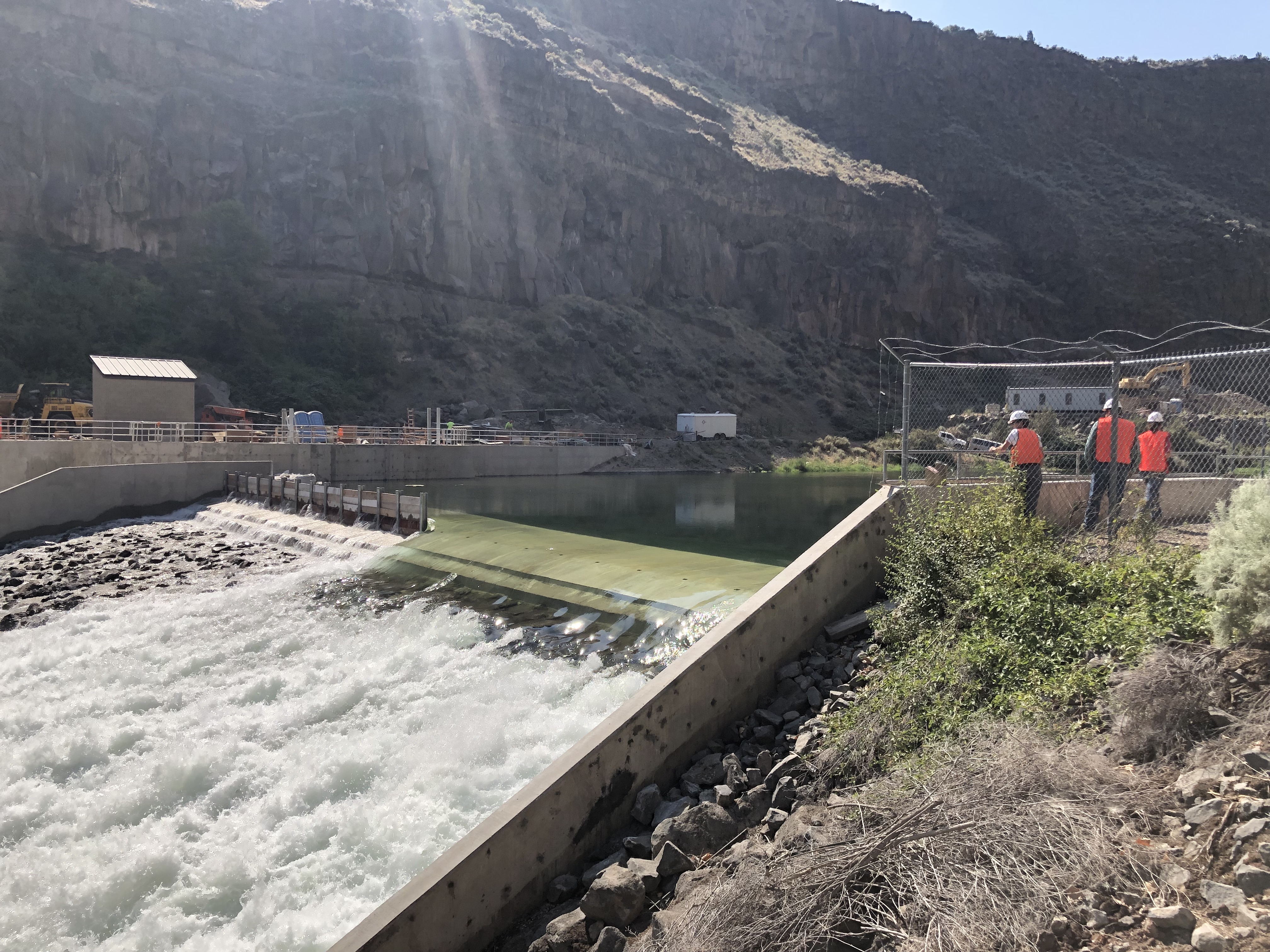

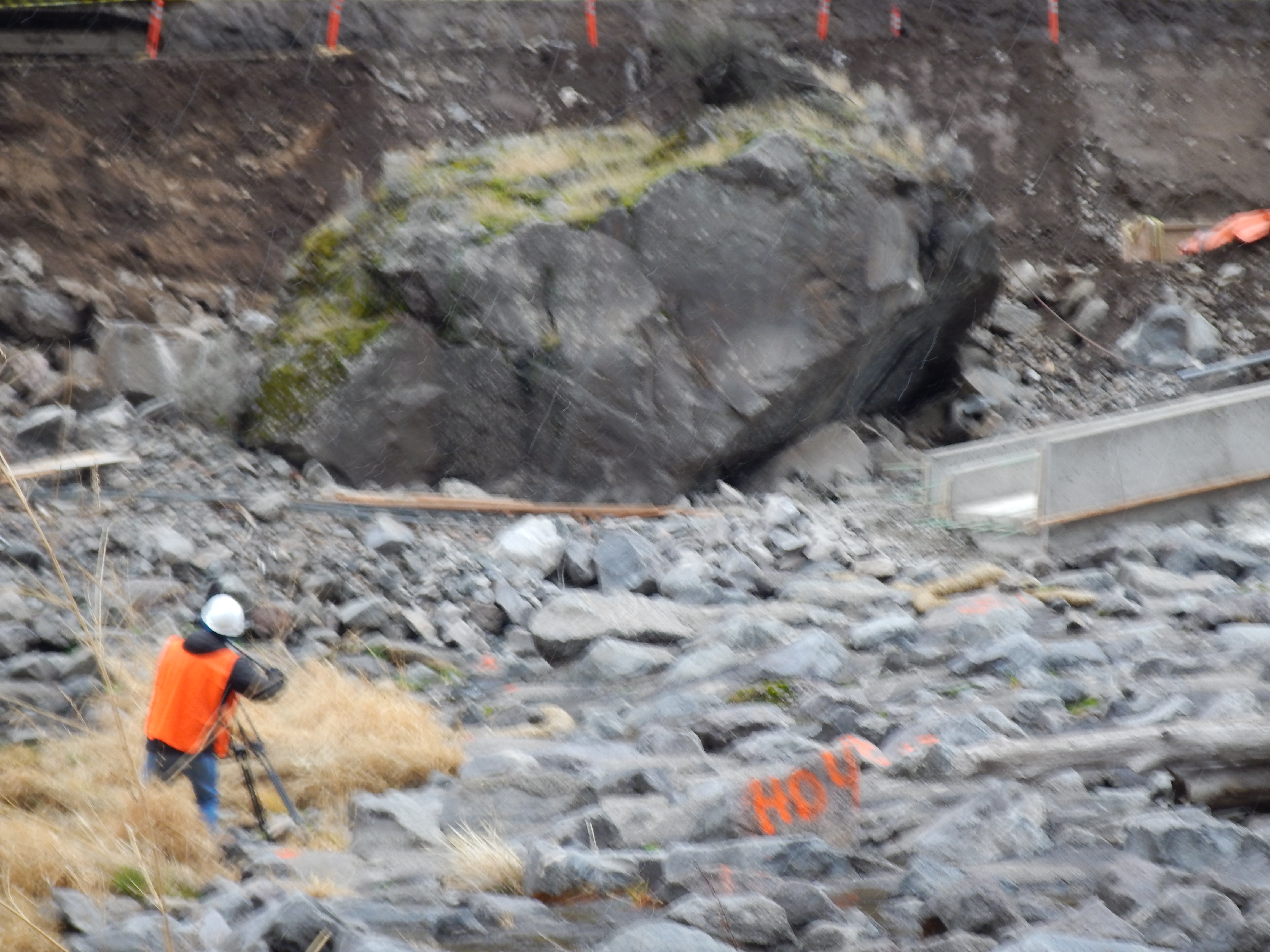

![]() half the sill blocked off to keep water off the project. | ![]() Building the lower section of the fish ladder, attraction flow shoot, all around a large boulder that could not be moved so they designed around it. | ![]() Finished threshold |

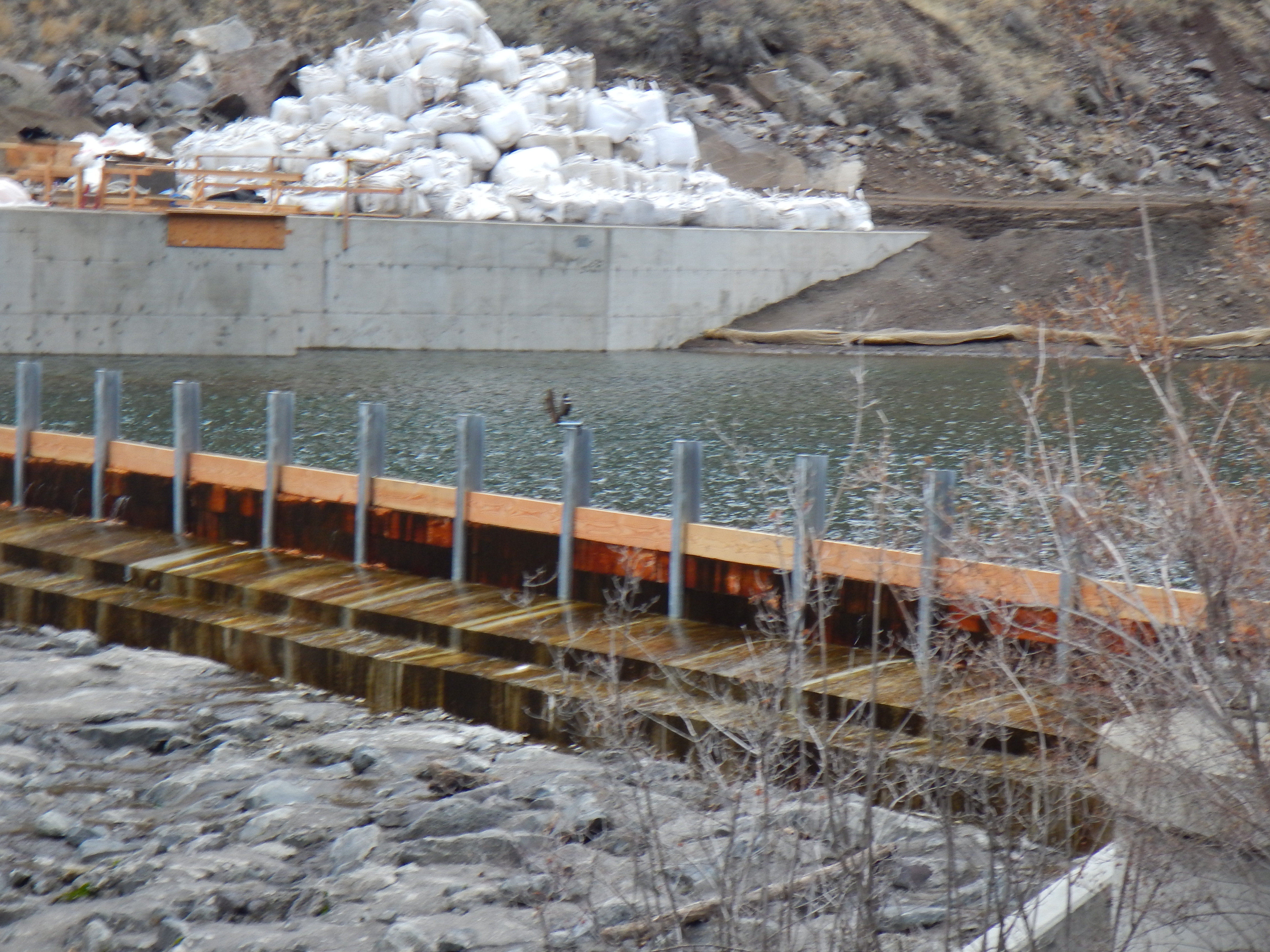

![]() showing flash boards in place, that are engineered to break if the water flows to strongly for safety. | ![]() Flash boards hold water well, and can be dropped to 4 different levels. | ![]() Massive amounts of re-bar 1 inch in diameter are used to create concrete chute forms. |

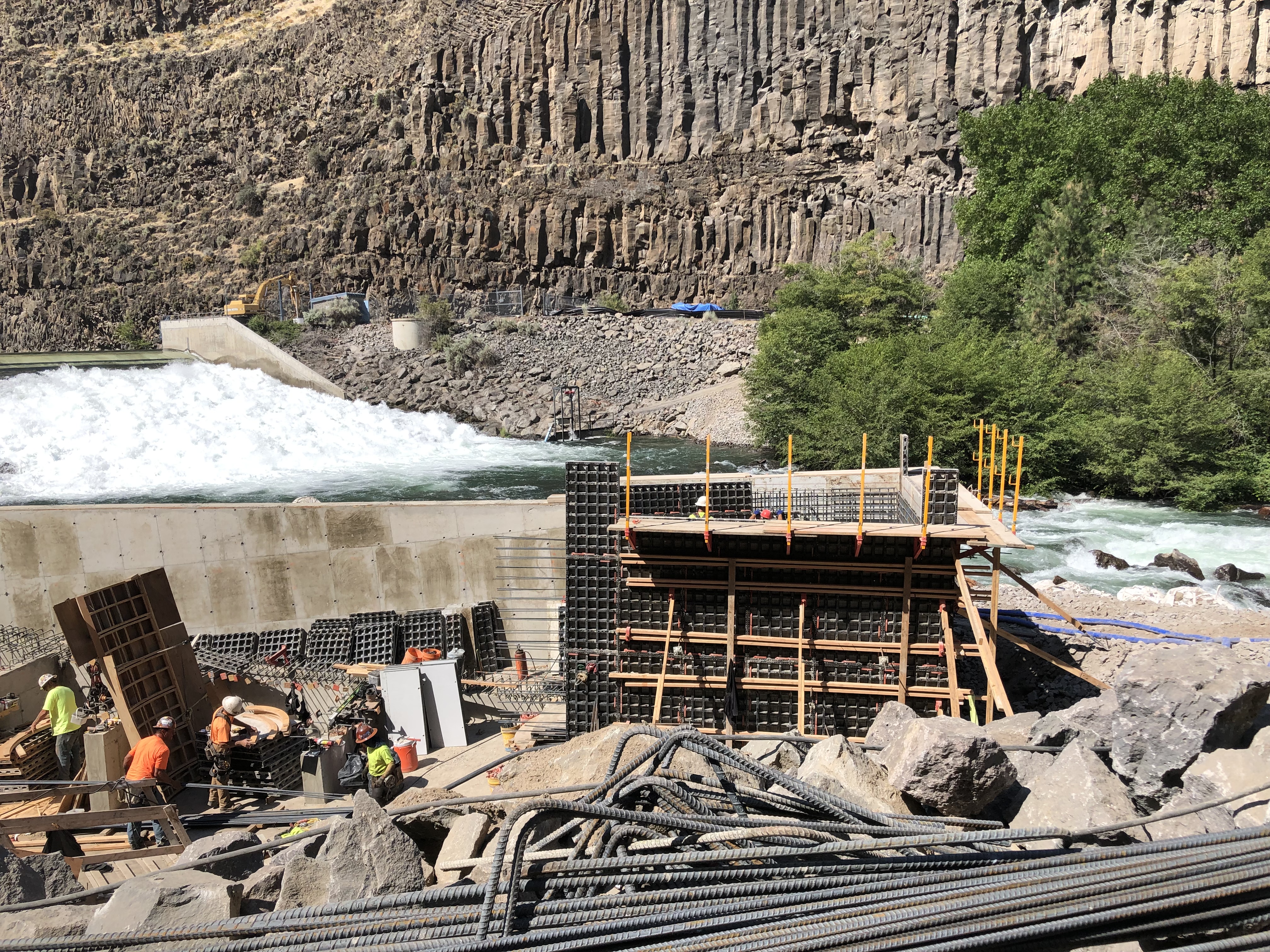

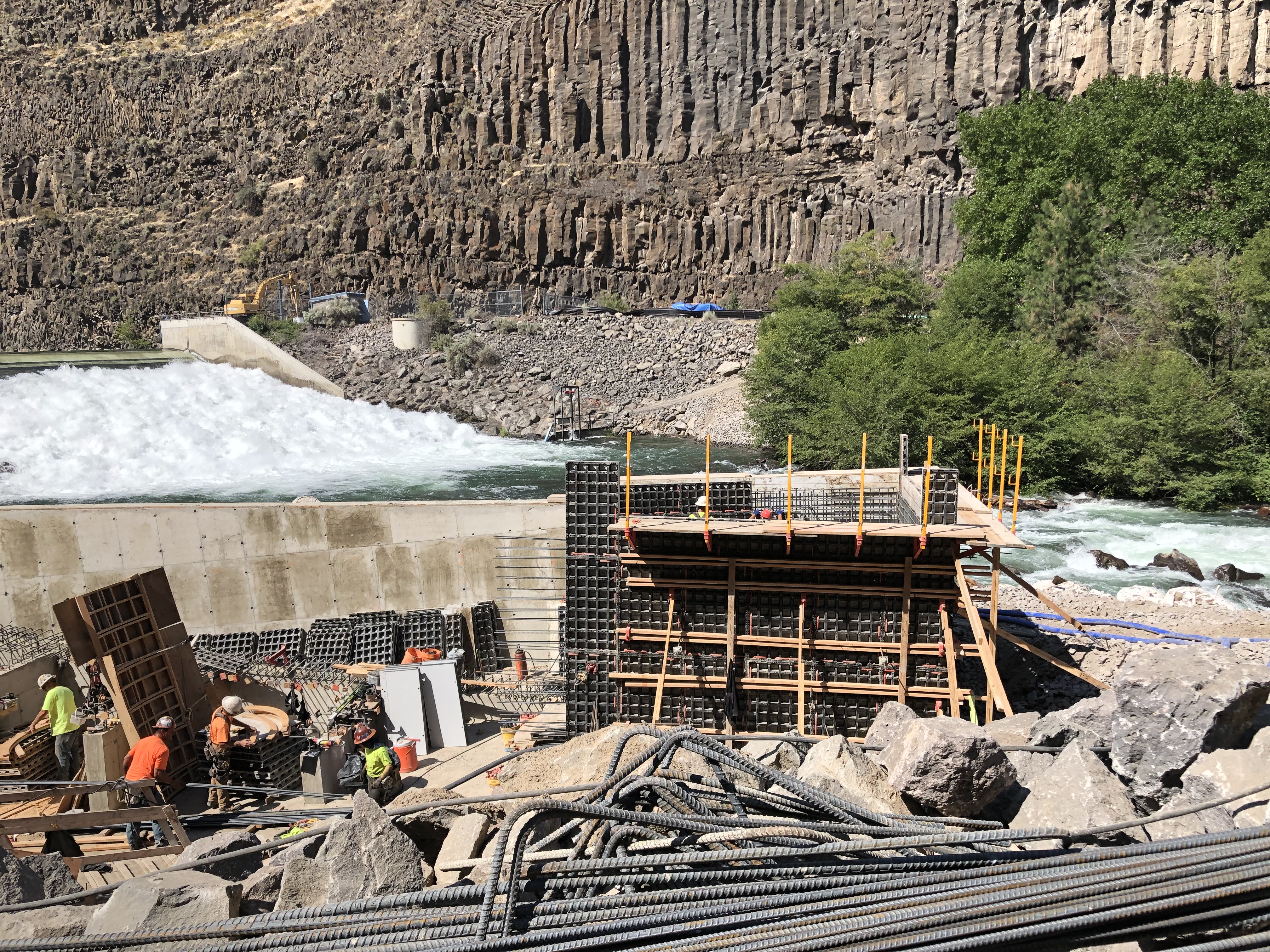

![]() Concrete forms are braced as much as they can with thousands of tonnes of concrete behind them. | ![]() this is the pool that the fish will enter the ladder in. | ![]() Attractant flow shoot, will be adjustable to allow for multiple flow levels to attract fish to use the ladder. |

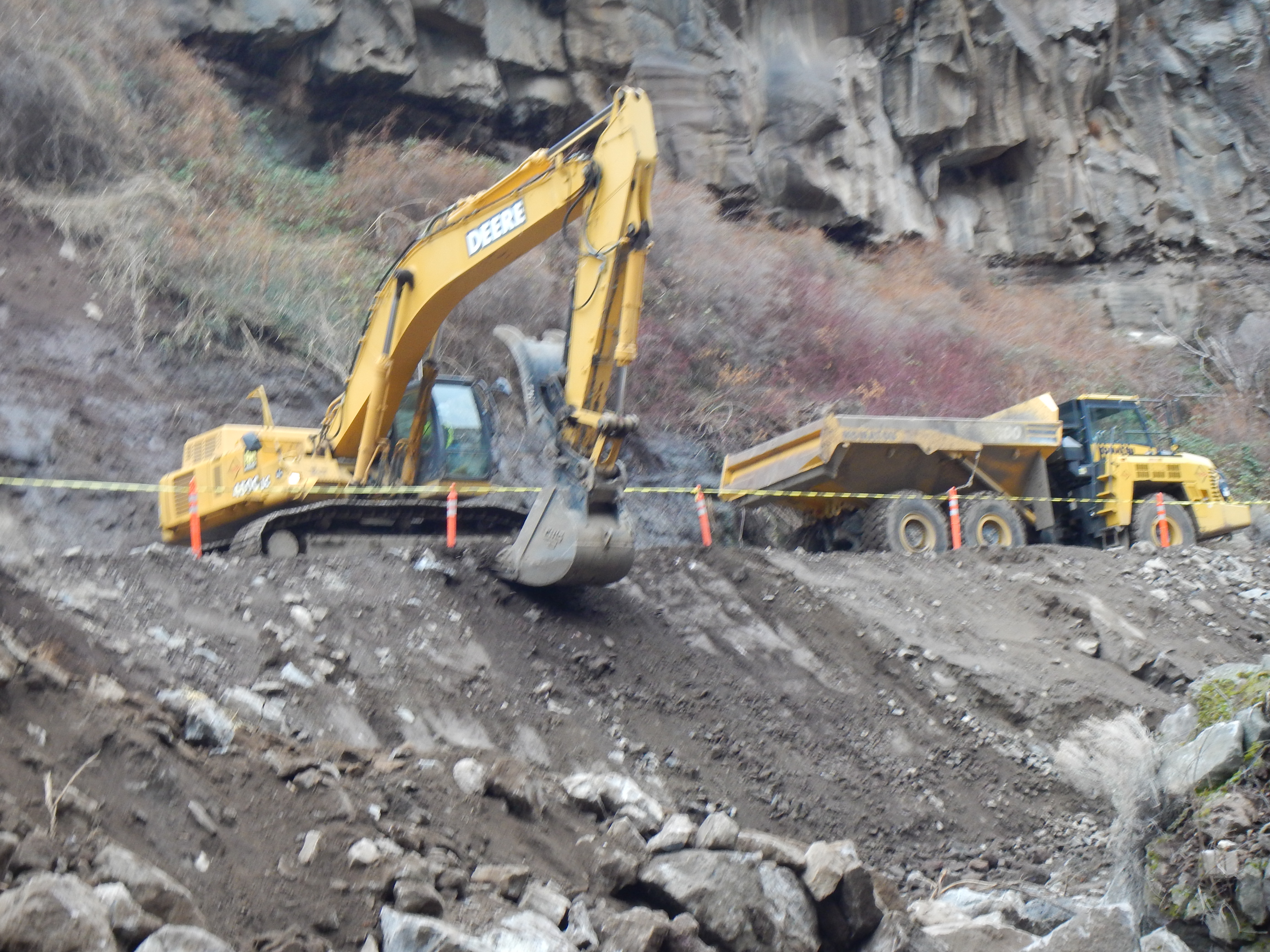

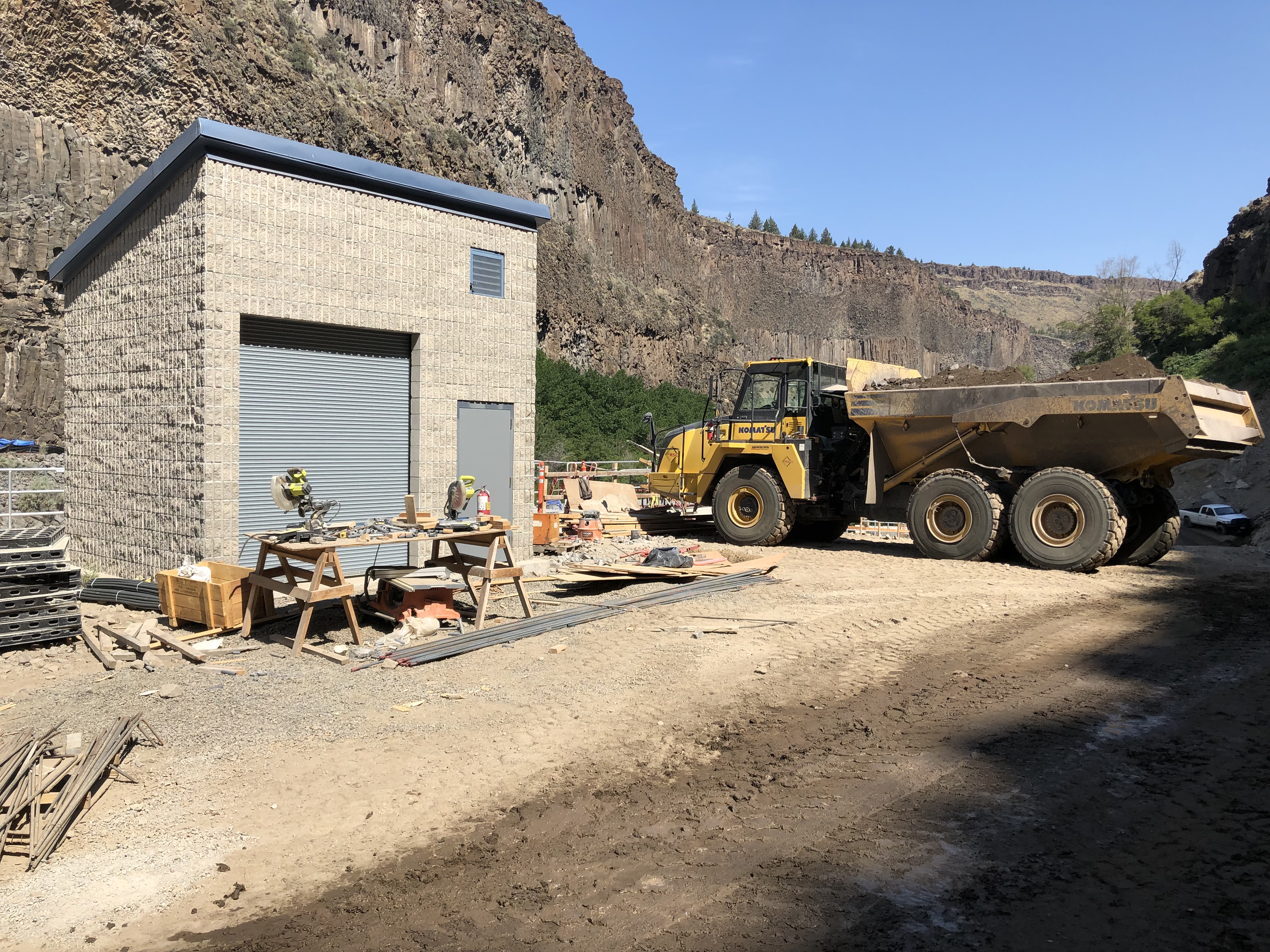

![]() Operation shack will allow users to change flows to the ladder and attractant flow chute. | ![]() Excavators work daily to clear rock, clear sites, move equipment, assist in all elements. | ![]() Cliff side shot of the final ladder being poured. |
![]() Pulling forms off a cured section of ladder. |
